• Rear axle, 3.73 ratio (Standard on *G23406 and *G33*06 models. Available on **13406 models.)
• Tow/haul mode selector instrument panel-mounted
• Rear-wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 105 amps (Not available with (C69) rear air conditioning or **13406 models.)
• Frame, ladder-type
• Suspension, front independent with coil springs and stabilizer bar (Standard and only available on *G***06 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Tires, front LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle (Standard on *G23406, *G33406 and *G33706 models.)
• Wheels, Gray-painted includes Gray center caps and steel spare (Standard on *G23406 and *G33*06 models.)
• Body, standard
• Bumpers, front and rear painted Black with step-pad (Not available when ordered with (V37) front and rear chrome bumpers.)
• Grille, Black composite with single rectangular halogen headlamps
• Headlamps, halogen
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash. (Standard on *G23406, *G33406 and *G33706 models with 12- and 15-passenger seating. Not available with 8-passenger seating.)
• Glass, full-body window package (Includes (A18) swing-out rear cargo door glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split

• Audio system, AM/FM stereo with seek-and-scan, digital clock and 2 front door speakers (with 1LT Preferred Equipment Group Not available with (NP5) leather wrapped steering wheel.)

• Seats, front bucket with Vinyl trim and outboard head restraints (Requires (**W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.) (Requires 1LS Preferred Equipment Group)
• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (Standard on *G23406, *G33406, and *G33706 models only.)
• Floor covering, full-length Black rubberized-vinyl
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Cruise control (Included and only available with (ZQ3) Convenience Package, tilt-wheel and cruise control.)
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone manual
• Defogger, front and side windows
• Mirror, inside rearview manual day/night
• Headliner, cloth
• Assist handle, front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, VORTEC 6.0L V8 SFI

• (319 hp [237.9 kW] @ 4600 rpm
• 367 lb-ft of torque [495.5 N-m] @ 4400 rpm) (STD)

• 3.73 Axle Ratio
• Gray-Painted w/Gray Center Caps Wheels
• Wheel Trim w/Chrome Center Caps
• Reclining Front Bucket Seats w/Inboard Armrests
• Rear Air
• 12-Passenger Seating (2-3-3-4 Seating Config)
• Deluxe Console
• AM/FM Stereo w/Seek & Scan
• Power Convenience Package
• AM/FM Stereo w/CD Player/Seek & Scan
• Power Door Locks w/Lock-Out Protection
• Full-Floor Color-Keyed Carpeting
• Rear Auxiliary Heater
• Auxiliary Lighting
• Electric Rear-Window Defogger
• Front & Rear Chrome Bumpers w/Step-Pad
• Chrome Appearance Package
• Smoker's Package
• 145 Amp Alternator
• Sliding Passenger-Side Door
• Power-Adjustable Black Outside Heated Mirrors
• Power Windows
• Driver & Front Passenger Padded Visors
• Dual Composite Halogen Headlamps
• 8-Point Digital Compass
• Chrome Grille
• 4-Wheel Disc Brakes
• 4th-Row Bench Seat
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Speed control
• Power steering
• Passenger door bin
• Passenger cancellable airbag
• Overhead airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• AM/FM radio
• ABS brakes
• 3rd row seats: bench
• Voltmeter
• Tachometer
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3079
• Curb Weight - Rear (lbs): 2843
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1155
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.14
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack-&-Pinion
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid Inboard Rail
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.4
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.1
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Step Up Height - Front (in): 19.4
• Step Up Height - Side (in): 20.2
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Length @ Floor to Seat 2 (in): 89.4
• Cargo Area Length @ Floor to Seat 3 (in): 57.4
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume to Seat 1 (ft³): 217.3
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.5
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 68.9
• Second Hip Room (in): 66.0
• Third Head Room (in): 38.1
• Third Leg Room (in): 37.6
• Third Shoulder Room (in): 63.5
• Third Hip Room (in): 64.4
• Fourth Head Room (in): 38.1
• Fourth Leg Room (in): 39.8
• Fourth Shoulder Room (in): 68.3
• Fourth Hip Room (in): 59.6
• Summary

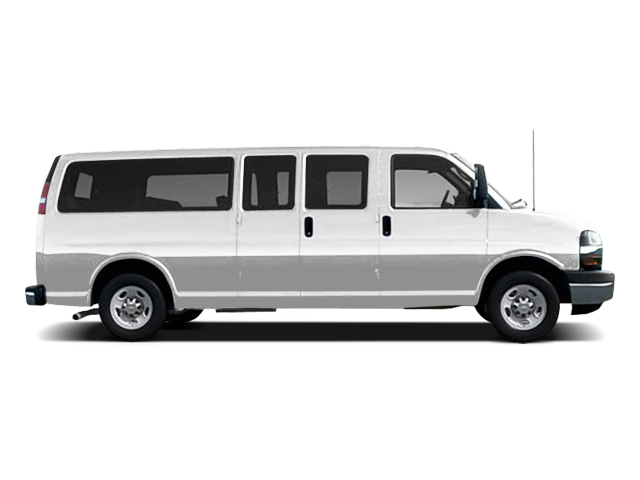

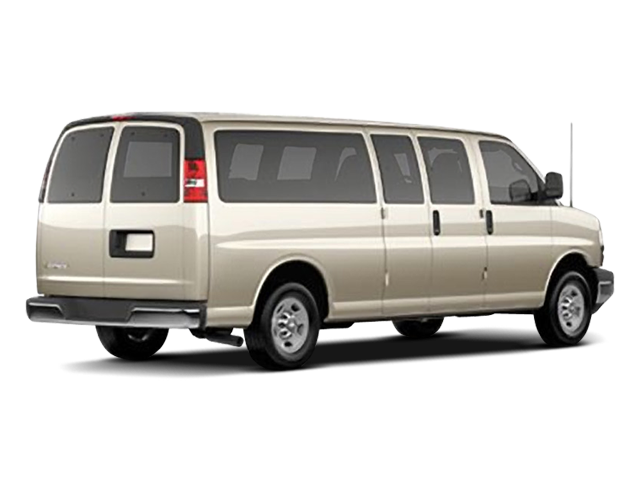

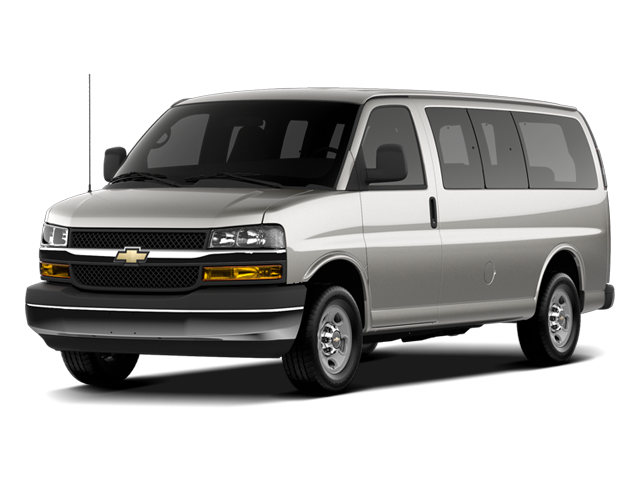

• Vehicle Name: Chevrolet Express Passenger
• Body Style: 3500 135" WB
• Body Code: ZW9
